Y-type Fluorine Lined Filter
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
Y-type fluorine lined filter
Introductions
Y-type fluorine lined filter is used to remove impurities in corrosive media, protect pumps, valves and other equipments working properly. Generally pass water network is 20-60 mesh / cm2, ventilation net is 40-100 mesh / cm2, pass oil net is 100-480 mesh / cm2. Configuration according to the corresponding media. As the filter inwall and the rosebox are made of high corrosion-resistant PTFE, so the products are widely used in a variety of corrosive pipelines.
Flange dimensions
flange dimension PN1.0Mpa according to GB9115.8-88 standard。
flange dimension PN1.6Mpa according to GB9113.3-8 standard
flange dimension PN2.5Mpa according to GB9113.4-88 standard
Specification and types
nominal pressure：1.0～2.5Mpa
nominal diameter：20～450mm。

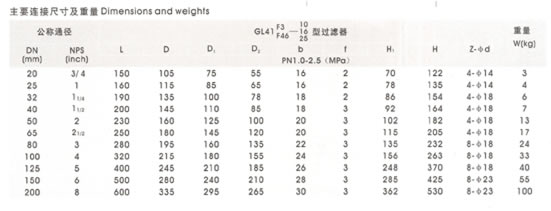

Installation dimensions
Y-type fluorine lined filter constructral diagram
| No. | Part name | Ductile cast iron Q | Cast steel C |
| 1 | Body,bonnet | QT450-10 | WCB/A216 WCB |
| 2 | Rosebox | PTFE(F4) | |
| 3 | Bolt, nut | 35/45, A193 B7/A194 2H | |
| 4 | Lining layer | PFAF(F501), FEP(F46), PCTFE(F3), Po(Polyolefin) | |
