Flange Wedge Fluorine Lined Gate Valve

manufacturer: Shanghai Fengqi Industry Development Co., Ltd.
Eml: sales@fengqi.sh.cn

Tel: 86 (21) 3652 8716
Mob: (86) 138 1635 6498

product drawing

Flange wedge fluorine lined gate valves
Flange wedge fluorine lined gate valves

Technical specifications

Design specification Face to face dimension Connecting flange Test and inspection Product marks Supply specifiaction
GB 12234 GB 12221 JB78; GB9113 GB/T  13927 GB/T  12220 JB/T 7928

The materials of main parts

No. Part name Grey cast iron Cast steel Stainless acid resistant cast steel Ultra-low carbon stainless acid resistant cast steel
Z C P R PL RL
1 Body,bonnet HT250 WCB CF8 CF8M CF3 CF3M
2 Disc Carbon steel, stainless steel, fully covered with rubber
3 Stem Carbon steel, stainless steel, partly covered with rubber
4 Lining Fluorine plastic, PTFE
5 handwheel HT250

Main external dimensions

Flange wedge fluorine lined gate valve constructral diagram
Flange wedge fluorine lined gate valve constructral diagram

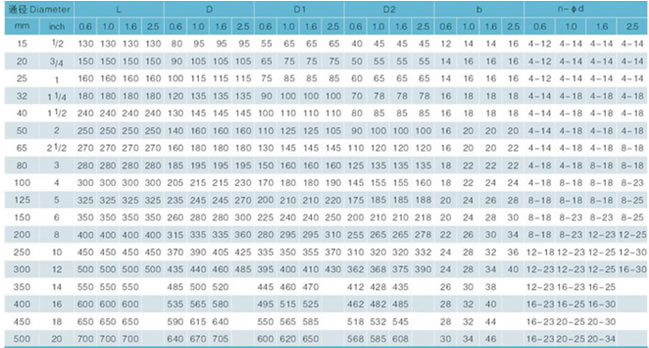

Main external dimensions
