Straight-through Fluorine Lined Visual Glass
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
Straight-through fluorine lined visual glass
Introduction
It is a equipment that used in corrosive pipelines to observe the flow status directly. It is mainly composed by the cast steel or cast iron frames and two acid-resistant glasses, both the inwall frame and sealing surface have the fluorine plastic lining layer, there are teo or three jump balls between the glasses that jump continuously under the flow impact. The fluorine plastic pipe glasses have good corrosive resistance, low cost, strong function, in addition to direct observation of the fluid color, bubbles and crystallization conditions, and also have an intuitive response of the fluid flow velocity and its change according by the jump ball jumping situation, to help guide operations.
Parameters
nominal diameter：DN15～150mm
nominal pressure：PN1.0Mpa
connecting type: flange connection
Appliacble medium: Sulfuric acid, hydrofluoric acid, phosphoric acid, chlorine, alkali, aqua regia, etc. that hve a strong corrosive media
Type and meaning
| No | Name | Materials |
| 1 | Glass pressplate | ZG25 |
| 2 | Glass body | ZG25 |
| 3 | Lining | F46 |
| 4 | Glass | tempering glass |
| 5 | gasket | corrosive resistant asbestos plate |
Installation dimensions

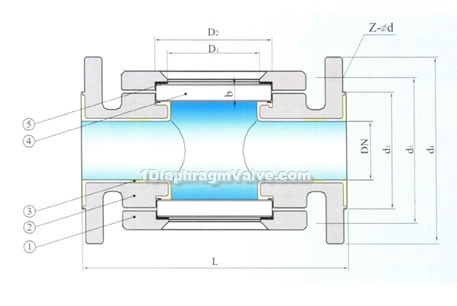

Straight-through fluorine lined visual glass constructral diagram
| Nominal diameter | Galss dimensions | Main dimensions | weight | |||||
| DN | D2Xb | D1 | d2 | d3 | d4 | L | Z-φd | Kg |
| 25 | 80X15 | 60 | 65 | 85 | 115 | 230 | 4-14 | 7 |
| 32 | 80X15 | 60 | 75 | 100 | 135 | 230 | 4-18 | 8 |
| 40 | 100X15 | 80 | 85 | 110 | 145 | 230 | 4-18 | 12.5 |
| 50 | 100X15 | 80 | 100 | 125 | 160 | 230 | 4-18 | 13 |
| 65 | 120X18 | 100 | 120 | 145 | 180 | 240 | 4-18 | 14.5 |
| 80 | 120X18 | 100 | 135 | 160 | 195 | 240 | 4-18 | 16 |
| 100 | 140X20 | 120 | 155 | 180 | 215 | 240 | 8-M16 | 17.5 |
| 125 | 160X20 | 145 | 185 | 210 | 245 | 250 | 8-18 | 24 |
| 150 | 180X20 | 165 | 200 | 240 | 280 | 300 | 8-23 | 33 |
