Diaphragm valves pressure temperature levels and flow characteristics

pressure-temperature level

rubber-Lined diaphragm valve pressure-- temperature level see Figure a
Fluorine plastic lined diaphragm valve pressure--temperature rating see Figure b

Diaphragm valves pressure temperature levels and flow characteristics(pic1)
Diaphragm valves pressure temperature levels and flow characteristics(pic1)
Diaphragm valves pressure temperature levels and flow characteristics(pic2)
Diaphragm valves pressure temperature levels and flow characteristics(pic2)

Flow characteristics

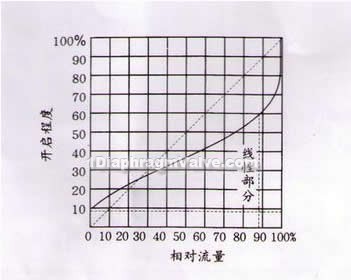

Weir-style diaphragm valves flow characteristics shown as below,
That is approximately linear characteristic before 60% opening degree.

Diaphragm valves pressure temperature levels and flow characteristics(pic3)
Diaphragm valves pressure temperature levels and flow characteristics(pic3)
